SF-3060 Automatic double-sided labeling machine | Front Back Labeler

■Suitable for double-sided or single-sided labeling of square or flat objects

Send Inquiry

Send Email

Description

Technical parameter

Products Description

Brand: SFXB
Commodity name: SF-3060 Automatic double-sided labeling machine

The header is adjustable within a 6D space, providing powerful and flexible adjustment capabilities.
Labeling for any product can be correctly set up within just a few minutes.
The pressure between the drive shaft and the pressure roller is adjustable, allowing for precise control of the label feeding direction. Unlike common elastic pressing mechanisms, this design enables unrestricted label movement.
The label outlet adopts a double pressure-roller structure, which keeps the label tape tight and helps avoid label breakage due to backing paper damage during die-cutting. The sectional-type clutch ensures more balanced tension.
A high-performance servo motor from a well-known manufacturer is used to achieve closed-loop control, ensuring high-speed and high-precision positioning.
A specially designed positioning mechanism ensures accurate alignment of the objects to be labeled, resulting in precise label placement.
The pressing belt and main drive gear are connected to ensure absolute synchronization between the two conveyor belts without the need for additional adjustments.
A multi-sided wrapping labeling mechanism can be added to handle both round and square bottles, allowing a single machine to perform multiple labeling functions: flat bottle labeling, full-wrap round bottle labeling, round bottle positioning labeling, and multi-sided labeling for square bottles.
An advanced HMI interface, PLC control system, and a 304 stainless steel body are adopted. Operators can easily use the machine after simple training.

SF-3060 Automatic double-sided labeling machine

Technical parameter

project	SF-3060
Labeling accuracy	±1.0mm
Labeling speed	≤100 bpm _
Sticker size	Length ( L ) 20~ 300mm Width ( W ) 20~ 120mm Height ( H ) 60~ 320mm
Label inner diameter	∅ 76mm
Label outer diameter	100~350mm
Label Roll Width	10~130mm
label length	15~300mm
pressure range	0 .4 〜 0.6 Mpa
power supply	AC220V/50/60Hz 3000W
Host size (length, width and height)	3000 ×1800× 1540mm

Scope Of Application

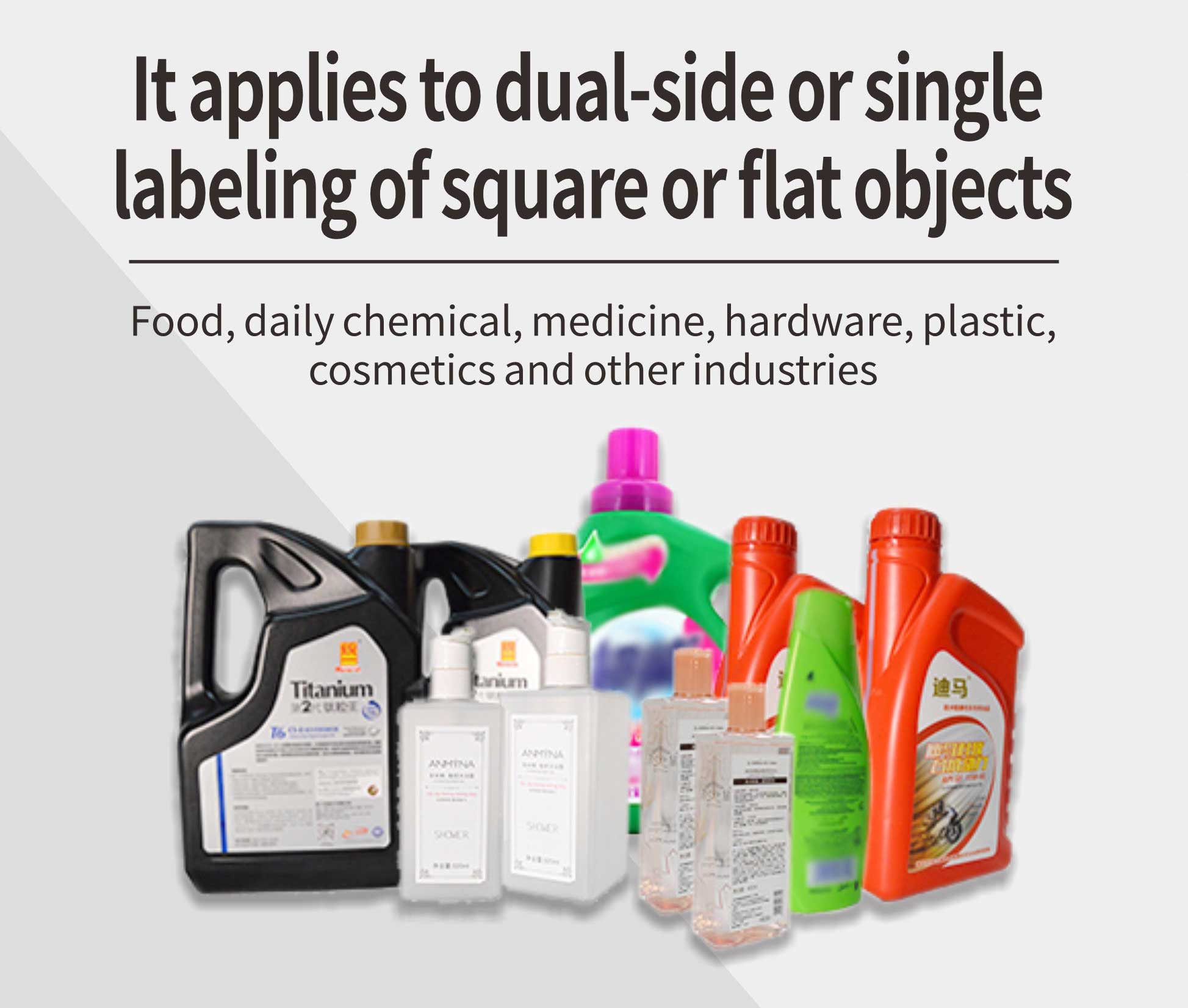

lt applies to dual-side or single-side labeling of square or flat objects.
