I. Introduction: The Unseen Force of Modern Packaging – The Cartoning Machine

Defining the Cartoning Machine: More Than Just a Box Maker

A cartoning machine, often referred to in the industry as a carton packing machine, cartoner, or carton sealing machine, is a pivotal piece of equipment in automated packaging processes. Its core function involves forming flat carton blanks, precisely inserting various products into them, and then securely sealing the cartons. This makes it an indispensable component in packaging lines for a diverse range of products, from everyday consumer goods to sensitive pharmaceuticals.

The value of these machines extends far beyond simple carton assembly. They are meticulously designed to automate carton erection, precise product insertion, and final secure sealing, thereby optimizing the entire packaging workflow. SFXB’s GDZ-130 Automatic Cartoning Machine, for instance, perfectly exemplifies this advanced integrated approach. This equipment combines optical, electrical, pneumatic, and mechanical configurations, aiming to deliver superior production performance and high working efficiency to meet customer demands for rapid and reliable cartoning. This multi-technology integration ensures stability and reliability even during high-speed operation, guaranteeing production line continuity and output quality.

A Brief History of Automated Packaging: From Manual Labor to Robotic Precision

The evolution of the packaging industry, from its manual beginnings to today’s high-tech automation, stands as a powerful testament to industrial progress. In the early stages of industrialization, carton packaging relied entirely on manual labor, which was inefficient and prone to errors. As large-scale mechanization emerged, the limitations of manual operations became increasingly apparent, prompting the birth of carton packing machines that revolutionized production lines by replacing arduous manual labor with automated systems.

The broader history of filling and packaging machinery is deeply intertwined with the Industrial Revolution and transformations in the food industry, accelerating from the late 19th century and continuing to the present day. Early milestones include Nicolas Appert’s canning preservation method in the early 1800s and the invention of the first automatic glass bottle filling machine in the U.S. in the 1850s. The 20th century saw a leap forward in packaging and filling machinery with the widespread adoption of electric machines. Pioneers like Henry Heinz advanced hygienic filling techniques in food production, and vacuum filling, aseptic filling, and automatic sealing machines became prevalent.

Industrial automation itself evolved in parallel, from basic conveyor belts used for raw material transport in the late 19th century to more complex automated material handling (AMH) systems, and the introduction of industrial robots in the mid-20th century. AMH systems demonstrated significant advantages over manual operations in terms of speed, flexibility, and precision. In the latter half of the 20th century, with advancements in computerization and automation, Programmable Logic Controllers (PLCs) and more sophisticated robotics were integrated into cartoning machines. These innovations enabled precise control over the packaging process, dramatically increasing both speed and accuracy. This technological evolution reveals a continuous progression of automation as a direct response to evolving industrial demands. Initially, packaging was entirely manual, inefficient, and inconsistent. As industrial scale grew, the limitations of human labor became a bottleneck. This challenge directly spurred the need for early mechanization. Subsequently, the advent of electrified machines, automated material handling systems, and robotics were all driven by the persistent pursuit of higher speeds, greater consistency, stricter hygiene standards, and ultimately, superior precision. The shift from general-purpose automation (like conveyor belts) to specialized, intelligent machines (like systems with integrated PLCs and sensors) exemplifies a continuous cycle of innovation driven by market and production imperatives. This historical context underscores that modern cartoning machines are not a luxury but a necessary outcome of centuries of industrial optimization. For business clients, this background highlights that investing in cutting-edge cartoning technology is not just about meeting current needs, but about aligning with the fundamental trajectory of industrial progress to stay ahead of the curve.

The Indispensable Role of Cartoning Machines in Modern Manufacturing

In today’s manufacturing landscape, automated solutions are the cornerstone of efficiency and productivity. Among these, cartoning machines stand out as a central component of automated packaging, with their importance growing steadily. Manufacturers globally are increasingly relying on cartoners to streamline operations, significantly reduce labor costs, and enhance packaging accuracy to meet stringent quality standards.

These machines are considered vital tools for handling high-volume packaging tasks, offering precision and speed that are crucial in fast-paced production environments. The seamless integration of advanced technologies into cartoning machines has fundamentally reshaped how businesses approach packaging, making them indispensable assets in modern manufacturing. They play a pivotal role in meeting the escalating demand across various industries for rapid and accurate packaging solutions. Positioning cartoners as a microcosm of the broader automation trend elevates their perceived value. This helps business decision-makers understand that investing in advanced cartoning equipment is not an isolated decision, but a strategic step towards a more integrated, efficient, and future-proof manufacturing ecosystem. This perspective is particularly appealing to clients focused on holistic operational improvement and digital transformation.

II. Deconstructing the Cartoning Machine: Types, Components, and Core Mechanisms

A. Understanding Cartoning Machine Types

Horizontal Cartoning Machines: The Workhorses of High-Speed Packaging

Horizontal cartoners are characterized by their flat infeed system, through which products are loaded horizontally into cartons. Often referred to as side-load cartoners, they are well-suited for handling lighter bags, pouches, and flexible packages. Their design makes them ideal for high-speed, bulk packaging applications, commonly found in industries packaging products like coffee, cereals, pizza, and rice. The process typically involves folding a stack of flat carton blanks into a box shape, which is then presented to the product filling area. SFXB’s GDZ-130 Automatic Cartoning Machine is a prime example of a horizontal cartoner, engineered for efficient side-load operations.

Vertical Cartoning Machines: Precision for Fragile and Irregular Products

In contrast, vertical cartoners load products from above, dropping them vertically into cartons. They are also known as top-load cartoners. This top-loading method significantly reduces the risk of product damage, making them highly suitable for packaging fragile items such as bottles, vials, ampoules, and even delicate produce like vegetables. They excel at handling rigid containers and can achieve impressive packaging speeds in certain applications, often exceeding 300 cartons per minute. Beyond fragile items, vertical cartoners are also used for “bare” products like grains and pasta, where precise measured quantities are dropped into the carton before sealing. A notable advantage of vertical cartoners is their smaller footprint compared to horizontal machines, optimizing valuable floor space in manufacturing facilities.

Wrap-Around Cartoning Machines: Snug Fit for Enhanced Protection

Wrap-around cartoners are specialized machines that form the carton directly around the product, sealing both the bottom and top to create a highly secure package. This method offers superior stability and product protection, making them ideal for items requiring a snug fit, such as multi-packs of beverages or canned goods. They are capable of creating customized secondary packaging that precisely adapts to the product’s dimensions, leading to reduced overall material usage and contributing to sustainability efforts.

Continuous Motion vs. Intermittent Motion: Matching Speed to Production Needs

• Continuous Motion Carton Erectors: These machines are designed for smooth, uninterrupted product loading and carton movement, enabling extremely high speeds. All operations occur while the cartons are in continuous motion, resulting in higher throughput and reduced mechanical stress on the machine. They are ideal for straightforward packaging tasks involving regular-shaped solid products.
• Intermittent Motion Carton Erectors: These cartoners operate by stopping the carton at each station for specific operations before moving it to the next. While generally slower and less efficient due to these pauses, they offer greater control and are often more cost-effective. They are well-suited for specialized packaging of irregularly shaped products or when complex insertion tasks require temporary halts.

SFXB’s GDZ-130 cartoning machine, with its cartoning speed of 30-120 cartons/min, indicates its capability to operate in an efficient mode to maximize output, while also being adaptable to varying production demands.

Semi-Automatic vs. Fully Automatic Cartoning Machines: Scaling Automation to Business Needs

• Semi-Automatic Cartoning Machines: These machines strike a balance between automation and manual intervention, typically handling carton forming and sealing automatically but requiring human operators for product insertion. They offer a cost-effective solution for small to medium-sized operations where budget constraints or lower production volumes do not necessitate full automation.
• Fully Automatic Cartoning Machines: Designed for high-volume production, these machines automate the entire packaging process from carton forming and product filling to closing and sealing, with minimal human intervention. Once configured, they can run continuously, significantly boosting production speed and consistency while drastically reducing labor costs.

SFXB’s GDZ-130 is explicitly described as a “fully automatic” machine, highlighting its ability to autonomously handle the entire cartoning process for maximum efficiency.

The table below provides a comparative overview of different cartoning machine types, offering a quick reference for potential buyers:

Table 1: Cartoning Machine Type Comparison

This table, with its clear comparisons, helps decision-makers quickly grasp the fundamental characteristics, ideal applications, and pros and cons of each cartoning machine type. This enables them to more effectively filter suitable options based on their product characteristics, production volume, and operational constraints. This intuitive presentation reinforces the report’s value as a practical guide.

B. Deconstructing the Automatic Cartoning Machine

The Robust Machine Frame: A Foundation of Stability

The machine frame serves as the core skeleton of the cartoning machine, providing essential structural support and precise positioning for all internal components. Its stability and low center of gravity are crucial for ensuring smooth and consistent mechanical operation, especially during high-speed runs. Typically constructed from durable materials like stainless steel, the frame not only offers structural integrity but also acts as a protective shield for sensitive internal mechanisms, guarding against external factors and operational stresses. This robust design is the physical guarantee of the machine’s long-term reliable performance.

Advanced Feeding and Conveying Systems: The Art of Seamless Material Handling

The feeding system, encompassing feeders and conveyor belts, is vital for ensuring a continuous and precise supply of both cartons and products. These systems are driven by various motors, ensuring a consistent flow. Conveyor belts, often integrated with gearing systems and guard rails, play a crucial role in transporting cartons and products through different stages of the machine.

Modern systems feature adjustable feeder slots, allowing the machine to seamlessly accommodate various carton sizes without extensive reconfiguration. Different types of conveyors, such as chain, belt, and spool roller conveyors, are selected based on the specific load requirements and desired precision for material handling. This sophisticated material handling system is key to ensuring a smooth and efficient overall packaging process.

Carton Magazine and Suction Cup Assembly: Precision in Blank Handling

The carton magazine is the initial storage area for stacked flat carton blanks before they are fed into the machine. Its adjustable compartments offer flexibility to accommodate various carton sizes. The suction cup mechanism, typically powered by a vacuum pump, is a critical component for precisely picking individual cartons and accurately positioning them for subsequent processing. Integrated sensors confirm correct carton alignment, preventing errors and jams. Advanced feeders often utilize vacuum suction cups or mechanical grippers to ensure only one carton is extracted at a time, maintaining smooth and uninterrupted operation.

The Ingenious Carton Erecting Mechanism: From Flat to Formed

This mechanism is the crucial stage where a two-dimensional carton blank is ingeniously transformed into a three-dimensional box, ready for product filling. The process involves a series of precisely synchronized folding plates and pneumatic pushers that manipulate the carton along its pre-scored lines. In high-end automatic cartoners, servo motors are often employed for more precise control over the folding process, ensuring consistent carton formation and perfect squareness even at very high operating speeds. These erecting machines are versatile, capable of handling various carton styles, including regular slotted cartons (RSC), die-cut cartons, and tray-style cartons, depending on the machine’s customization.

Product Insertion System: Gentle Yet Precise Product Placement

The product insertion system is the core component within an automatic cartoning machine responsible for accurately and gently placing products into the erected cartons. Insertion methods vary significantly based on the nature of the product and packaging requirements. For delicate items like blister packs or vials, high-precision pick-and-place robots are often employed. For more robust products, simpler bucket conveyors or pusher mechanisms may be used. Many modern cartoners feature multi-axis servo-driven insertion systems, allowing for complex product arrangements and accommodating different pack patterns within the same machine, maximizing flexibility. SFXB’s GDZ-130 Automatic Cartoning Machine specifically highlights its “multi-material packaging feeder” , indicating its advanced capability to handle diverse product types, from bottles to blisters and tubes, showcasing its versatility in product insertion.

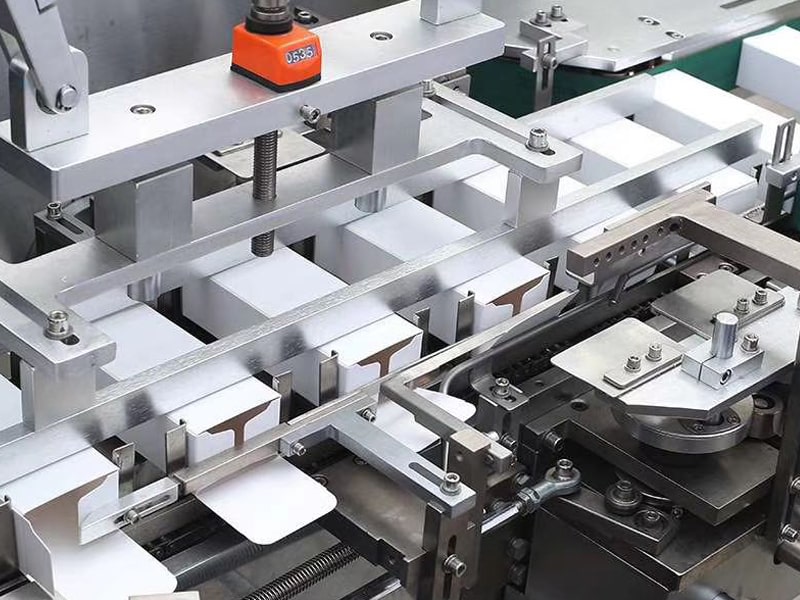

Sealing Unit: Hot Melt Glue vs. Tuck-In Closure

The sealing unit is responsible for the final closure of the carton, ensuring the product is secure and protected. This typically involves one of two primary methods: hot melt glue or tuck-in closure.

• Hot Melt Glue: This method bonds the carton by cooling liquid hot melt adhesive, which is precisely applied by a specialized mechanism. Hot melt sealing offers superior packaging quality, strong resistance to temperature and humidity changes, and excellent adhesion to highly permeable cartons. It also provides an anti-counterfeiting function, as any attempt to open the carton will tear the fibers, leaving visible evidence. The GDZ-130 offers flexibility for mechanical sealing or hot melt glue application to suit different product needs.
• Tuck-In Closure: This is a common sealing method where the carton’s flaps are folded and inserted into slots. While simpler and often used for various carton designs, this method generally offers less tamper evidence compared to hot melt glue.

The sealing process is precisely driven by a main spindle and synchronized cam systems, ensuring each carton is securely and neatly sealed.

The Brain of the Operation: Control Systems (PLC and HMI)

The control system acts as the central nervous system of the cartoning machine, coordinating all relevant parts and their process functions to ensure timely and orderly packaging. Modern cartoners are controlled via user-friendly Human-Machine Interface (HMI) control panels, often featuring touchscreens for intuitive operation. Programmable Logic Controllers (PLCs) are at the heart of these control systems, enabling operators to adjust key settings, monitor parameters, and optimize each cycle for maximum efficiency and minimal waste. The GDZ-130 machine specifically utilizes PLC control and HMI for operation settings, with its electrical components sourced from internationally renowned brands, underscoring its reliability and advanced control capabilities.

This in-depth analysis of components and working principles reveals that modern cartoning machines are far more than simple mechanical assemblies. While the robust machine frame provides physical integrity, it is the sophisticated control systems (PLCs and HMIs) that act as the “brain,” orchestrating the precise movements of actuators (motors, solenoids) and interpreting real-time data from sensors. The GDZ-130’s description as an “integration of light, electric, pneumatic, and machinery” explicitly confirms this holistic design philosophy. This suggests that advancements in mechanical precision are enabled and amplified by progress in digital control and sensing technologies. For business buyers, this means evaluating a cartoning machine requires looking beyond traditional mechanical specifications. The sophistication of the control system, its user-friendliness (HMI), diagnostic capabilities, and ability to integrate with other systems are equally, if not more, critical for long-term performance, reliability, and operational ease. This positions advanced machines as intelligent assets rather than mere tools, necessitating a more nuanced procurement approach.

Sensors and Vision Systems: The Eyes of Quality Control

Sensors are indispensable for the precise operation of modern automatic cartoning machines, playing a crucial role in detecting carton presence, product positioning, and verifying seal integrity. Photoelectric sensors use light to detect the presence or absence of objects, while inductive sensors detect objects entering a specific space via electromagnetic fields. Advanced vision sensors combine machine vision cameras with onboard intelligence to perform optical inspections, addressing common quality issues such as missing lids, misapplied labels, or incorrect labels. These systems are used for comprehensive quality checks, including monitoring package combinations, checking content completeness (even through opaque packaging via capacitive sensors), and documenting carton contents for traceability. The GDZ-130 is equipped with an “intelligent detection device” that automatically stops the machine if there is no material or leaflet, or if air pressure is low. More importantly, it automatically rejects unqualified products, directly contributing to waste reduction and quality assurance. This system can be customized with additional detection functions as needed.

The persistent emphasis on sensors for quality control and operational efficiency highlights their central role in modern cartoning machines. The GDZ-130’s intelligent detection device, which can automatically stop the machine and reject unqualified products in the event of missing materials or defects, directly demonstrates the causal link between sensor technology and reduced waste, increased uptime, and ensured product consistency. This is not merely passive monitoring but an active embedding of error prevention and real-time decision-making into machine operation. The underlying theme is a shift from reactive problem-solving to proactive prediction and prevention. This capability translates into tangible ROI for business clients by minimizing material waste, reducing rework, and ensuring compliance, thereby directly impacting profitability and brand reputation. It underscores that “smart” features are not just buzzwords but deliver concrete operational and financial benefits.

C. The Cartoning Process: A Step-by-Step Journey

The entire process, from carton blank feeding to final packaged product formation, can be broadly categorized into four main stages: unboxing (erecting), opening, filling, and closing.

• Step 1: Carton Feeding and Erecting: The machine automatically picks a flat carton blank from the magazine and erects it. A pneumatic system then sucks up and closes the bottom of the carton, forming it into a fillable box. The carton then proceeds into the loading area at the correct angle.
• Step 2: Product Loading and Insertion: In this critical phase, the machine’s mechanical system, often utilizing push rods or robotic arms, precisely and gently loads the product into the erected carton. For vertical cartoners, products can be fed vertically from a rotary plate.
• Step 3: Flap Folding: After product insertion, the carton moves to the folding zone, where the carton’s top flaps or lids are correctly folded and prepared for sealing.
• Step 4: Carton Sealing and Closing: The final stage involves the machine closing the carton’s tongues and securing them to fully seal the carton. This can be achieved either by gluing or tuck-in closure, depending on the carton design and product security requirements. Before closing, the machine typically bends the carton’s tongue and pushes the lid for insertion.
• Step 5: Printing and Quality Assurance (Post-Sealing): Many full-featured automatic cartoners also include additional functions after sealing, such as attaching sealing labels, performing heat shrink wrapping, printing batch numbers, or conducting online detection and rejection of any unqualified packages.

Synchronization: The Key to Flawless Operation

Optimal performance of any cartoning machine hinges on maintaining perfect synchronization between the feeding system, product flow, and carton movement. Advanced cartoners employ sophisticated timing systems and a series of sensors to precisely coordinate these two streams—cartons and products—ensuring seamless integration at every step. These intelligent systems can dynamically adjust speeds, ensuring that cartons and products arrive at the insertion point in perfect harmony, even when dealing with varying product sizes or carton dimensions. This precise level of synchronization is not just a feature; it is essential for achieving high operational efficiency, minimizing packaging errors, and ensuring consistent output quality.

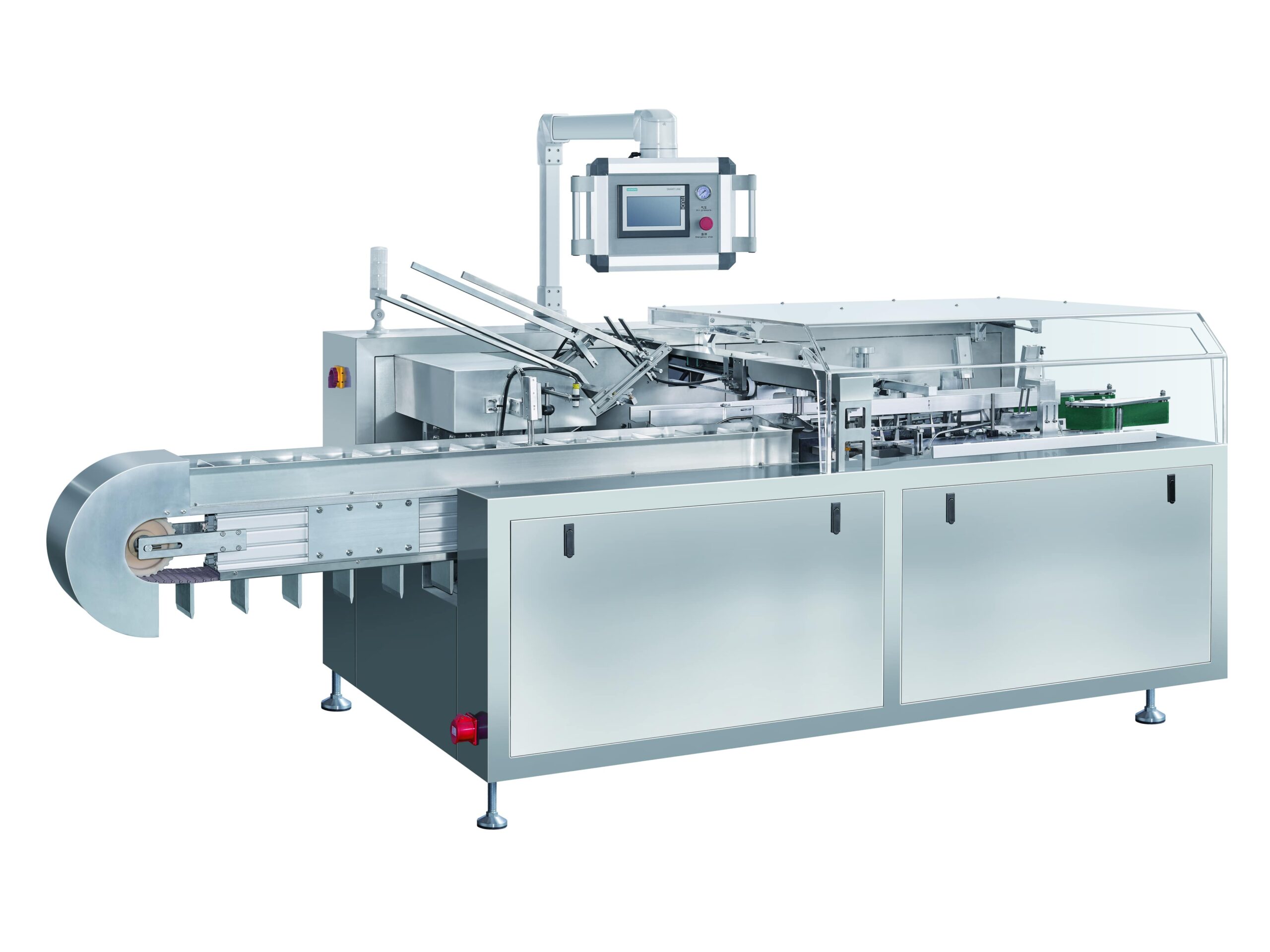

GDZ-130 Automatic Cartoning Machine with Multi-Material Feeder | High-Speed Packaging Solution

III. The Transformative Benefits of Automated Cartoning: Boosting Efficiency and ROI

Significant Increase in Production Speed and Throughput

Automated cartoning machines are designed to operate continuously at speeds far exceeding manual operations, often packaging hundreds of cartons per minute. This capability allows manufacturers to dramatically increase production speed and throughput. Such rapid throughput is crucial for meeting tight delivery schedules and enables businesses to scale production efficiently without compromising quality. While some machines can process 10-20 cartons per minute, high-performance models can exceed 300 cartons per minute, with some specific applications reaching up to 1000 cartons per minute. The elimination of human fatigue factors ensures consistent high speed and reliable output over extended production runs. SFXB’s GDZ-130, with its cartoning speed of 30-120 cartons/min, directly addresses the need for high-efficiency production, aligning with industry benchmarks for rapid output.

Substantial Reduction in Labor Costs and Human Error

Manual carton packing is inherently labor-intensive, time-consuming, and highly prone to human errors such as improper carton folding, incorrect product placement, or inconsistent sealing. Automated cartoning machines significantly reduce reliance on manual labor, leading to substantial savings in labor costs. Automation minimizes human errors that can cause product damage or packaging defects. The consistency and precision of machines enhance product presentation and reduce waste, ultimately lowering operational costs. Studies indicate that automated packaging systems can reduce labor costs by as much as 50%-60% while doubling output. This efficiency gain is not only seen on the production line but also in the optimization of the entire supply chain.

Superior Consistency and Quality Control

Automated cartoning machines ensure uniform carton erection, filling, and sealing with minimal variation. Integrated sensors and vision systems verify carton integrity, correct product placement, and seal quality in real-time. This level of quality control is difficult to achieve manually and helps maintain the high standards required by regulatory bodies and customers alike. Consistent packaging quality also enhances brand reputation, as consumers associate neat, professional packaging with product reliability and meticulous care. For instance, vision sensors can detect missing lids, misapplied labels, or incorrect labels, ensuring products meet brand standards. The GDZ-130’s intelligent detection system, capable of automatically rejecting unqualified products, further elevates the level of quality control.

Enhanced Product Protection and Reduced Damage

Packaging serves as the first line of defense against product damage during transit and storage. Automatic cartoning machines can be programmed to precisely handle fragile or irregularly shaped products, ensuring cartons are formed to fit products snugly. This customized carton fit reduces movement inside the box, minimizing breakage or deformation. Furthermore, secure sealing mechanisms prevent contamination and tampering, which is particularly critical for industries such as pharmaceuticals, cosmetics, and food. This focus on product protection directly translates to customer satisfaction and brand image.

Flexibility to Adapt to Various Carton Sizes and Designs

Modern automatic cartoning machines feature modular designs and flexible configurations that can accommodate a wide range of carton sizes, shapes, and materials. This versatility allows manufacturers to switch between different product lines or packaging styles with minimal downtime. Additionally, these machines support advanced printing and labeling options, enabling brands to customize packaging with logos, barcodes, and product information, boosting marketing appeal and compliance with traceability requirements. For example, the GDZ-130 is capable of accommodating carton dimensions ranging from (70-200)mm x (35-120)mm x (14-70)mm and can be customized according to client needs, demonstrating its exceptional adaptability.

The repeated mention of adaptability—adjustable feeder slots , handling various carton sizes and styles , and quick changeovers —indicates a fundamental shift in design philosophy. The GDZ-130’s specific ability to “change packaging specifications” and be “customized according to client needs” further emphasizes this. This versatility is not an accidental feature but a direct response to the increasing fragmentation of product lines, shorter product lifecycles, and the growing demand for personalized packaging across industries. The underlying trend is the need for manufacturers to remain agile, and their machinery must support this agility. This perspective redefines machine flexibility as a strategic competitive advantage for the purchasing company. It highlights a versatile cartoner as a future-proof investment, capable of adapting to evolving market demands and product portfolios without significant re-investment in new machinery. This is particularly appealing to businesses operating in dynamic industries or those with diverse product lines, showcasing SFXB’s foresight in design.

Sustainability and Environmental Benefits

Sustainability has become an increasingly important priority for both manufacturers and consumers. Carton packaging is often recyclable and biodegradable, making it an eco-friendly alternative to plastic packaging. Automatic cartoning machines optimize material usage by minimizing waste through precise cutting and folding, contributing to resource conservation. By reducing packaging defects and material overuse, these machines help companies lower their environmental footprint and meet regulatory standards for sustainable packaging. Modern cartoners also focus on improving energy efficiency by optimizing motors, sensors, and control systems to reduce power consumption. This not only lowers operational costs but also aligns with global demands for environmentally responsible production.

Enhanced Employee Safety

Automated cartoning machines significantly improve workplace safety. By transferring repetitive, physically demanding tasks to machines, they reduce the risk of employees experiencing repetitive strain injuries (RSIs) and other injuries associated with manual handling of heavy items or repetitive motions. Machines are typically equipped with emergency stop buttons, safety guards, and interlocking systems to prevent access to moving parts during operation, thereby protecting operators. This focus on safety not only improves the working environment but also contributes to lower rates of workplace accidents and associated costs.

Production Line Integration and Optimization

Automatic cartoning machines are often part of larger packaging lines, seamlessly integrating with upstream and downstream equipment. This integration can include connections to product conveyors, coding and marking systems, checkweighers, and case packers. Advanced communication protocols allow the cartoning machine to exchange data with other production line components, ensuring coordinated operation and enabling comprehensive line monitoring and control. This integration capability minimizes bottlenecks, enhances overall production efficiency, and lays the groundwork for a smarter, more interconnected manufacturing environment. The GDZ-130 machine can be used alone or in conjunction with other equipment to form a complete production line, further emphasizing its flexibility in integration.

IV. Advanced Technologies in Cartoning Machines: Embracing the Industry 4.0 Era

The Convergence of Industry 4.0, IoT, and AI

Industry 4.0, also known as the Fourth Industrial Revolution, is characterized by the integration of advanced technologies such as Artificial Intelligence (AI), the Internet of Things (IoT), robotics, and big data into manufacturing and logistical processes. Cartoning machines, as a microcosm of this transformation, are leveraging these technologies in unprecedented ways.

• Automation and Robotics: AI enables the creation of advanced robotic systems capable of performing complex and precise tasks such as assembly, packaging, and quality control. These systems can also be equipped with learning and adaptability capabilities, enhancing their flexibility and efficiency. In cartoning machines, robotics are used for precise product insertion, collation, and handling, leading to increased speed and accuracy.
• Internet of Things (IoT): IoT enhances the tracking and monitoring of packaging materials by incorporating digital intelligence into physical packages. This involves the use of technologies such as RFID tags and QR codes, allowing manufacturers, retailers, and even consumers to monitor a package’s journey from the production line to its final destination with unrivaled accuracy. In cartoning machines, IoT sensors can collect real-time data on machine performance, enabling continuous optimization and predictive maintenance.
• Artificial Intelligence (AI) and Machine Learning (ML): AI plays a crucial role in optimizing manufacturing processes, predictive maintenance, and supply chain management. AI algorithms can analyze historical data to identify patterns, leading to optimized manufacturing processes, such as minimizing raw material losses, reducing energy consumption, or shortening production time. In cartoning machines, AI can be used for real-time quality control, automating product inspection to reduce the need for manual checks and increasing overall production efficiency. Predictive maintenance is one of the most significant applications of AI in Industry 4.0, analyzing data from machine sensors to predict potential failures, allowing for preventive maintenance before breakdowns occur.

This convergence of technologies not only enhances the efficiency and precision of cartoning machines but also makes them adaptable to evolving market demands. For example, the GDZ-130’s intelligent detection features, along with its PLC control system, exemplify the application of such advanced technologies.

Smart Factories and Connected Ecosystems

The vision of Industry 4.0 is to create smart factories where interconnected systems can autonomously communicate and optimize operations. Cartoning machines are a key component of this vision. By integrating with other machines across the production line, such as filling machines, labeling machines, and palletizers, cartoners contribute to a seamless, interconnected ecosystem. This integration not only boosts efficiency but also enables real-time data collection and analysis, leading to continuous operational optimization and the establishment of performance metrics, ultimately resulting in significant cost savings.

The Packaging 4.0 market is experiencing significant growth, driven by digitalization and automation aimed at streamlining processes, improving supply chain visibility, ensuring product quality, and providing engaging consumer experiences. This shift enables businesses to meet evolving customer needs, regulatory requirements, and sustainability goals, while fostering innovation and competitiveness within the packaging sector.

V. Sustainable Practices: A Green Future for Cartoning Machine Design and Operation

Compatibility with Eco-Friendly Materials

As consumers and businesses become more aware of the environmental impact of packaging waste, sustainability has taken center stage. Cartoning machines have adapted to these demands, becoming more versatile in handling a wider range of sustainable and recyclable materials. Many manufacturers now prioritize the use of paperboard and biodegradable packaging options over plastics. Cartoning machines capable of efficiently managing such materials are in high demand. For instance, cartons can be made from a wide range of recycled and recyclable materials, making carton packaging a highly sustainable option.

Enhanced Energy Efficiency

Energy efficiency has become an increasingly important priority in cartoning machine design and operation. By optimizing machine settings, utilizing energy-efficient components, and implementing sustainable operational practices, energy consumption and waste can be minimized.

• Energy-Efficient Components: Upgrading cartoning machines with energy-efficient motors, sensors, and control systems can lead to substantial energy savings. These components are designed to minimize energy waste and optimize performance, making them a worthwhile investment for businesses looking to reduce their environmental impact and operational costs.
• Optimized Machine Settings: Fine-tuning machine settings such as speed, temperature, and pressure can contribute to significant energy savings. By adjusting these settings based on specific production requirements, businesses can avoid unnecessary energy consumption while maintaining high production quality.
• Smart Automation: Leveraging smart automation technologies can lead to improved energy efficiency in cartoning machines. Automation systems can optimize production processes, reduce idle time, and minimize energy waste, ultimately leading to lower energy consumption and higher operational efficiency.
• Regular Energy Audits: Conducting regular energy audits can provide valuable insights into the energy consumption patterns of cartoning machines. By analyzing energy usage data and identifying areas for improvement, businesses can develop informed energy efficiency strategies that target specific areas of high energy consumption.

These practices not only reduce operational costs but also enable businesses to comply with environmental regulations and standards, enhance their reputation, and attract environmentally conscious partners and customers.

Waste Reduction and Optimized Material Usage

Automated cartoning solutions play a critical role in waste reduction. Through precise carton filling and sealing processes, these machines minimize material waste. Automation also reduces the risk of product damage by minimizing damage caused by improper handling or human error. Smart packaging solutions, combined with AI, can reduce material waste by up to 20% while improving production efficiency by 15%. For example, wrap-around cartoners are capable of creating customized secondary packaging that precisely adapts to the product’s dimensions, leading to reduced overall material usage. This material efficiency contributes to lower CO2 emissions and promotes a circular economy model.

VI. Maintenance and Troubleshooting: Ensuring Smooth Cartoning Machine Operation

Common Maintenance Practices

To ensure cartoning machines run smoothly and avoid costly downtime for repairs, a well-structured maintenance plan is crucial. Regular inspections, proper testing, and routine adjustments help packaging equipment last longer and perform at peak efficiency.

• Create a Maintenance Schedule: Developing a detailed maintenance schedule is one of the best ways to keep packaging machines running smoothly. Regularly scheduled maintenance ensures all parts are inspected and serviced at appropriate intervals. Manufacturer recommendations for maintenance frequency should be consulted, and the facility’s usage level should be considered. High-volume packaging operations may require more frequent equipment servicing.
• Perform Routine Inspections: Regular inspections are critical within a preventive maintenance plan because they allow for the detection of minor problems before they escalate into major issues. Qualified personnel should examine all vital machine components for any signs of damage.
• Lubrication Is Key: Lubrication is essential for the longevity of packaging equipment. Moving parts like bearings, rollers, and chains must be adequately lubricated to reduce friction and minimize wear. Inadequate lubrication can lead to increased wear, overheating, and premature failure of parts.
• Cleanliness Is Crucial: Keeping packaging machines clean is essential for both hygiene and machine performance. Debris, dust, and packaging material residue can clog moving parts and cause malfunctions. Over time, dirt buildup can impair machine performance and lead to jams or breakdowns.
• Test and Calibrate Regularly: Regular testing and calibration ensure packaging machinery performs at optimal levels. Testing confirms that all components are functioning correctly, while calibration ensures the machine is set to the correct parameters. Faulty sensors, incorrect timing, or misaligned components can lead to inaccurate packaging, material waste, or product damage during storage or shipping.
• Prioritize Safety Checks: Safety is a top priority when maintaining packaging machines. Regularly check emergency stop buttons, guards, and safety interlocks to ensure they are working properly. Any malfunction in safety systems can lead to accidents, so it’s crucial to include safety checks in your routine maintenance plan.
• Keep Spare Parts on Hand: Packaging machines are complex, and most parts will eventually wear out and need replacement. To avoid downtime, it’s essential to keep critical spare parts on hand. Commonly replaced items such as belts, sensors, and seals should be part of your inventory to minimize any delays during repairs.

Common Troubleshooting Strategies

Even with a robust maintenance plan, cartoning machines may occasionally encounter issues. Understanding common troubleshooting strategies can minimize downtime.

• Carton Feeding Problems: Check the carton magazine for blockages or damage, ensuring cartons are loaded correctly and aligned. Inspect suction cups or grippers for damage or blockages, cleaning or replacing them as needed. If cartons are feeding too quickly, causing jams, try reducing the feeding speed.
• Product Insertion Challenges: Verify correct product dimensions and inspect the insertion mechanism for damage or wear. Ensure pushers or pick-and-place devices are functioning properly, lubricating moving parts as needed. Monitor product flow, checking for blockages in the product hopper or chute.
• Sealing and Gluing Defects: Check the temperature and pressure settings of the gluing system, ensuring they align with manufacturer recommendations. Regularly clean glue applicators to prevent buildup, ensuring even and effective glue distribution. If heat sealing is used, verify heating elements are properly calibrated and maintain a stable temperature.
• Sensor Malfunctions: Regularly inspect and clean all sensors, paying special attention to those responsible for detecting carton presence, product positioning, and seal verification. Calibrate sensors as needed and replace any that show signs of wear or damage.
• PLC and HMI Issues: Keep control systems updated with the latest firmware and software patches. Implement a robust backup system for PLC programs and HMI configurations to minimize downtime in case of system crashes. Train operators to recognize warning signs of control system issues and perform basic troubleshooting procedures.
• Motor and Drive Failures: Regular maintenance, including checking for unusual noises, vibrations, or heat, can help prevent unexpected breakdowns. Implement a predictive maintenance schedule using vibration analysis and thermal imaging to detect potential motor issues before they cause significant problems. Keep spare motors and drives on hand for critical components to reduce downtime during replacements.

VII. Choosing a Reliable Cartoning Machine Manufacturer: Key to Long-Term Partnership

Selecting the right cartoning machine manufacturer is a strategic decision that will directly impact the efficiency, reliability, and long-term success of your packaging operations. Here are key factors to consider when evaluating potential suppliers:

Experience and Expertise

Look for manufacturers with extensive experience in packaging solutions. A supplier with deep industry knowledge and a thorough understanding of customer needs can offer more valuable insights and help identify opportunities for improvement. This includes their experience with your specific product type and their ability to provide customized solutions.

Customization Capabilities and Flexibility

Avoid companies that push “one-size-fits-all” solutions. The ideal supplier will assess your unique requirements and offer a tailored mix of packaging equipment and services. This includes the ability to customize machines to your product size, shape, and packaging requirements. SFXB’s GDZ-130 cartoning machine, for instance, emphasizes its customizable multi-part options according to client needs and adjustable packaging specifications for different uses. This flexibility is crucial for adapting to evolving market demands and product portfolios.

Investment in Research and Development (R&D) and Innovation

Focus on manufacturers who actively invest in R&D to drive innovation. The packaging industry evolves rapidly, with new technologies and materials constantly emerging. A supplier who understands industry trends and actively integrates cutting-edge technologies (such as AI, IoT, robotics) into their machine designs will ensure you receive the most advanced and efficient solutions. SFXB’s GDZ-130, developed after incorporating leading domestic and foreign technologies, exemplifies this commitment to technological innovation.

After-Sales Service and Support

A reliable after-sales service system is paramount. This includes:

• Maintenance and Consultation Services: Ensure the supplier offers maintenance and consultation services to help you keep your equipment running at peak performance.
• Spare Parts Availability: Inquire about the availability of spare parts and how quickly they can be provided when replacements are needed.
• Operator Training: Understand if they provide ongoing operator training to ensure your team can efficiently operate the machines.
• Responsiveness: Seek a partner who can provide timely responses and assistance, rather than just a vendor.

SFXB’s GDZ-130 offers “whole life after-sale service” and a “1-year warranty,” and highlights its fault display function for timely troubleshooting, all indicating a commitment to customer support.

Industry Reputation and Partnerships

Choose a supplier that maintains strong relationships with major equipment and consumable manufacturers. This indicates they are a reliable player in the industry and can provide comprehensive solutions. Check customer case studies and testimonials to assess their success across various industries (e.g., food, pharmaceutical, cosmetics).

Cost-Effectiveness and Return on Investment (ROI)

While initial cost is an important consideration, it’s more crucial to ensure you are getting a quality machine or system, not just the most affordable option. Evaluate the long-term benefits of the machine, including reduced labor costs, increased efficiency, minimized material waste, and decreased product damage, all of which will impact the ROI.

By comprehensively considering these factors, businesses can make an informed decision and select a cartoning machine manufacturer that meets their current needs and supports their future growth.

VIII. Packaging Machinery Market Trends

Market Growth Drivers

The global packaging automation market is experiencing rapid growth, projected to reach USD 145.8 billion by 2033, with a Compound Annual Growth Rate (CAGR) of 7.4%. This growth is primarily driven by:

• Growing Demand from End-Use Industries: Increasing demand for packaged goods across sectors like food and beverages, healthcare, pharmaceuticals, and logistics is a major driver of market expansion.
• Adoption of Automation and Smart Technologies: Automation enhances production capacity, reduces labor costs, and minimizes packaging errors. The integration of advanced technologies like AI, IoT, and robotics improves machine speed, precision, and flexibility, opening up new application areas.
• Demand for Sustainable Packaging: Growing environmental consciousness among consumers and regulatory bodies is driving the demand for recyclable, biodegradable, and energy-efficient packaging solutions.
• Expansion of E-commerce: The continuous growth of e-commerce fuels the demand for smaller, more efficient machines capable of handling individual orders and providing customized, durable packaging to withstand the logistics chain.

Regional Market Insights

• Asia Pacific: The Asia Pacific region is expected to hold the largest share of the global packaging automation market (34.1%) in 2024 and continue to dominate. Countries like China and India offer low-cost manufacturing environments and tax incentives for machinery imports, stimulating market growth. Rapid industrialization and the “Made-in-China” initiative are driving significant machinery demand.
• North America: North America remains a leader in the sustainable packaging market due to the presence of key manufacturers, government policies, and a well-established paper and cardboard recycling infrastructure.
• Europe: The European market is projected to experience significant growth, driven by bans on single-use plastics and a growing interest in recyclable packaging.

Overall, the packaging machinery market is moving towards more flexible, efficient, and sustainable solutions, with technological innovation and evolving consumer demands continuing to shape its future.

Conclusion

The cartoning machine has evolved from a simple mechanical device into an indispensable intelligent automation solution in modern manufacturing. Its development trajectory reflects the continuous industrial pursuit of efficiency, precision, and cost-effectiveness, gradually transitioning from labor-intensive manual operations to highly integrated automated systems. This evolution has not only enhanced production capabilities but also reshaped how businesses operate and compete in the market.

Currently, cartoning machines demonstrate unparalleled advantages in boosting production speed, significantly reducing labor costs and human error, ensuring superior product consistency and quality control, enhancing product protection, and offering the flexibility to adapt to various carton sizes and designs. The GDZ-130 Automatic Cartoning Machine, as SFXB’s flagship product, fully embodies these advanced features with its integration of light, electrical, pneumatic, and mechanical configurations, intelligent detection system, and multi-material packaging feeder, meeting the stringent demands of modern production for high efficiency and reliability.

Looking ahead, the deep integration of Industry 4.0, IoT, AI, and robotics will continue to drive the cartoning machine market. These technologies not only enable smarter factories and interconnected production ecosystems but also provide unprecedented operational benefits and competitive advantages through predictive maintenance, real-time data analysis, and optimized production processes. Concurrently, sustainability has become a core industry driver, prompting manufacturers to prioritize eco-friendly materials, energy efficiency, and waste reduction in design and operation to meet growing consumer and regulatory demands.

For businesses seeking to optimize their packaging processes, investing in advanced automated cartoning machines is no longer an option but a strategic imperative to maintain market competitiveness. Choosing a manufacturer with extensive experience, strong R&D capabilities, flexible customization services, and excellent after-sales support is crucial. Through such strategic investment, businesses can achieve immediate operational efficiency gains and cost savings, while laying a solid foundation for future growth and sustainable development.
